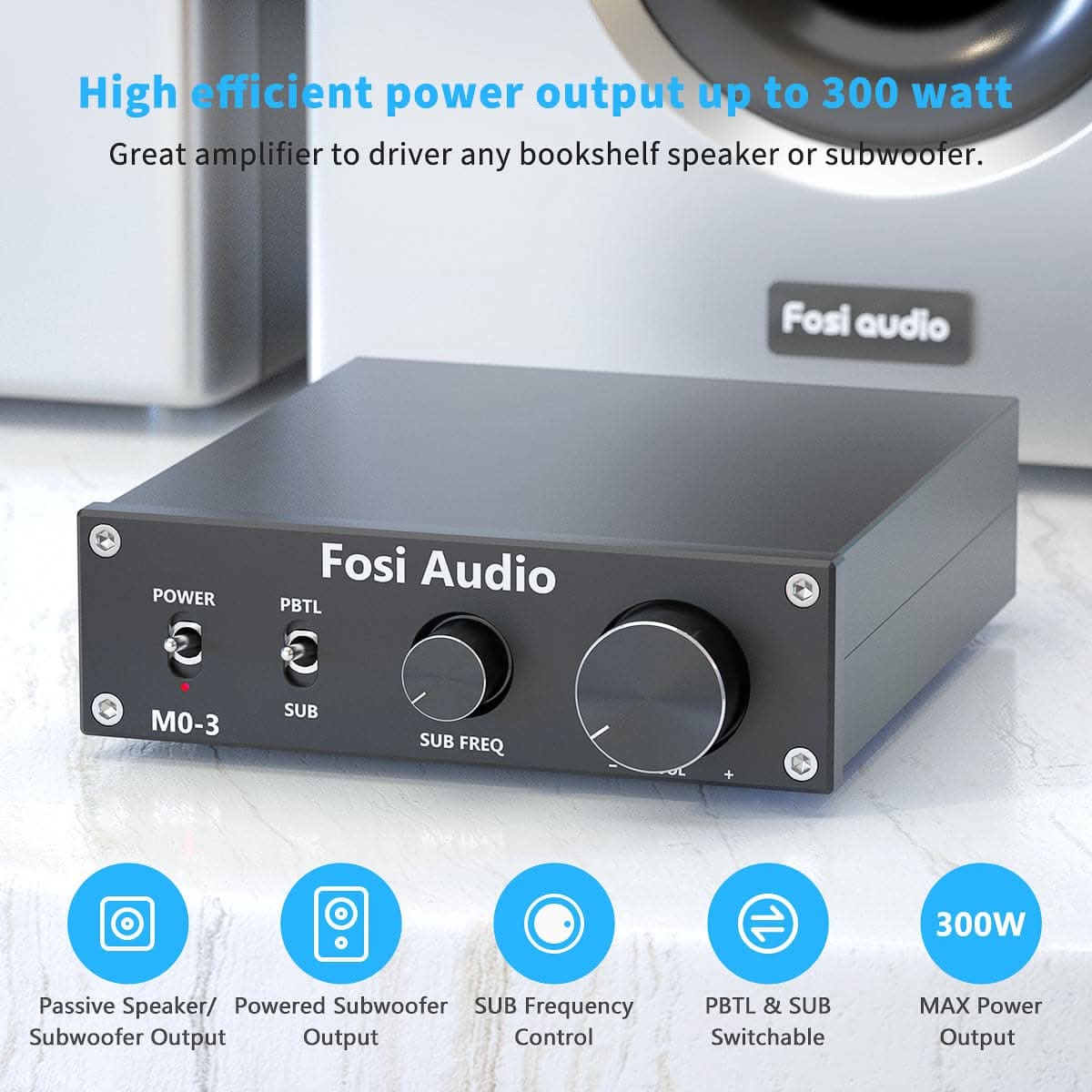

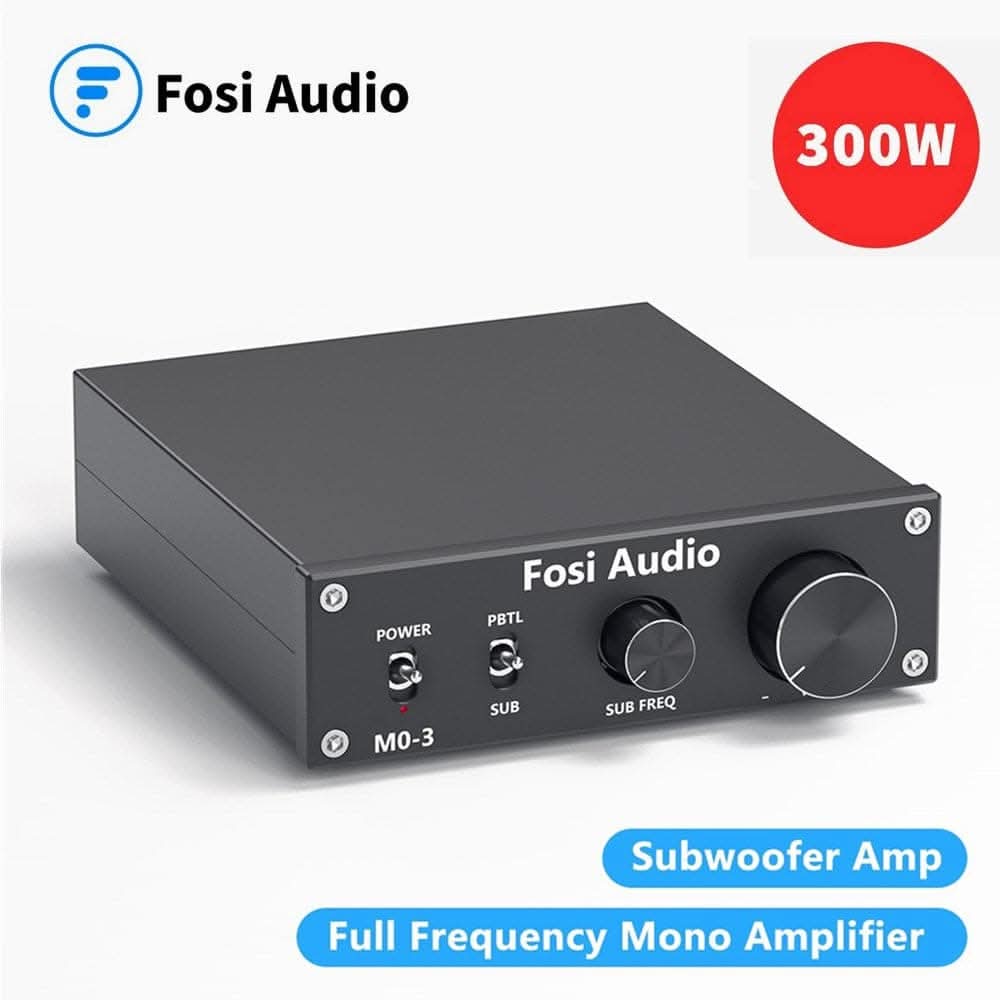

Fosi Audio M03 Subwoofer Mono Amplifier

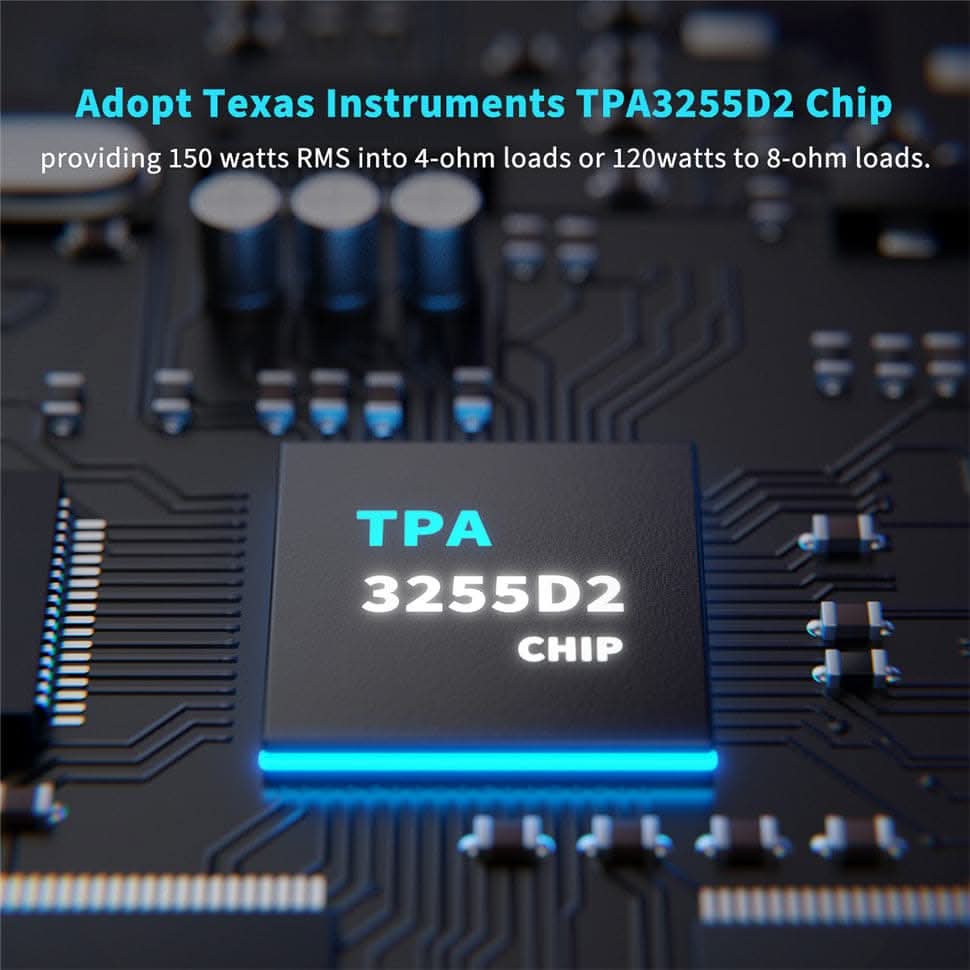

•  Hi-Fi Amp with Clean Sound Quality: Fosi Audio M03 subwoofer amp adopts the Instruments TPA3255D2 chip, High Efficient Power Output Up to 200Watt, providing 150 watts RMS into 4-ohm loads or 120watts to 8-ohm loads. Great amplifier to driver any bookshelf speaker or subwoofer;

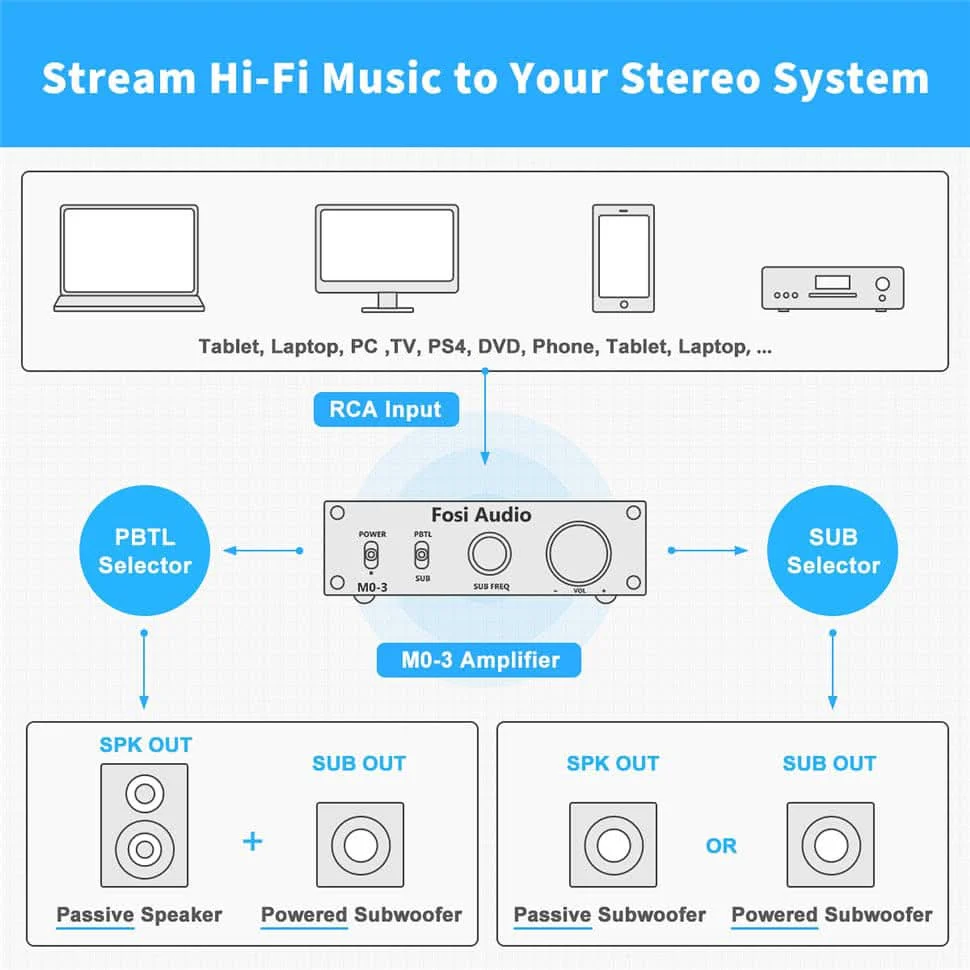

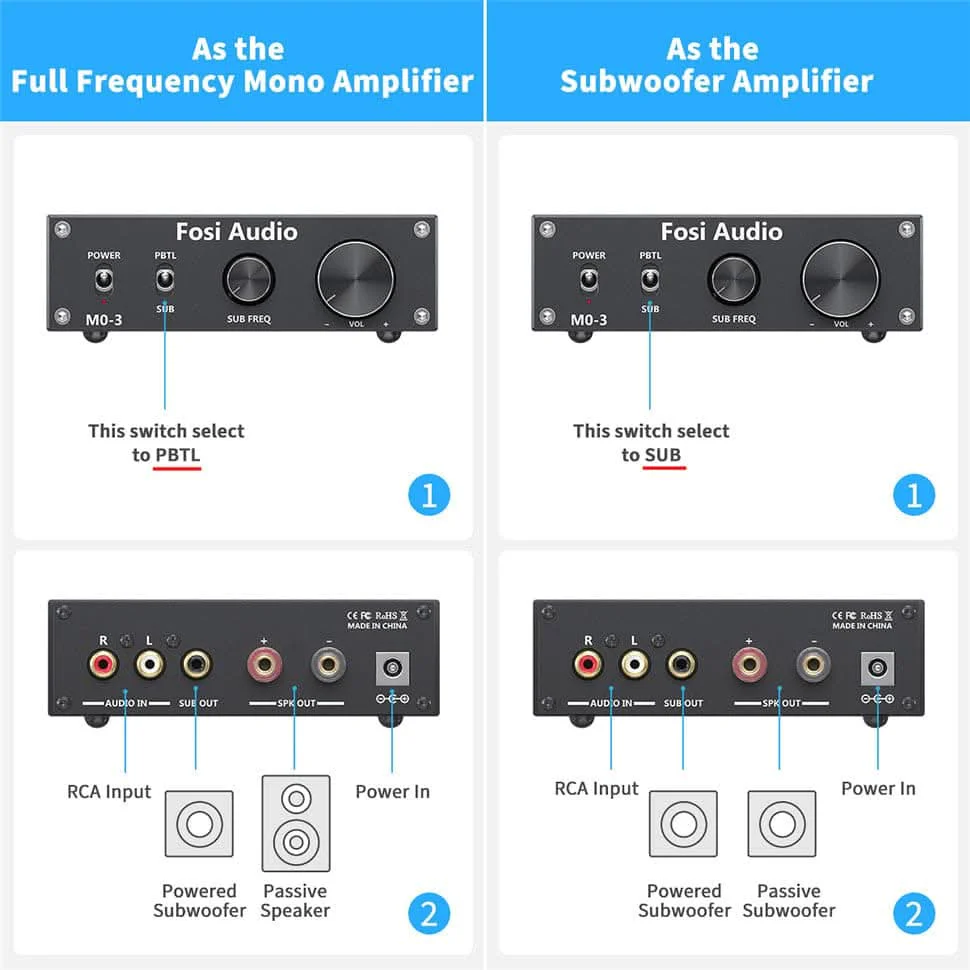

• Subwoofer amplifier and Full-Frequency Mono Amp: Switch to PBTL, it's a Full-Frequency Mono amp for driving passive speakers and powered subwoofer. Switch to SUB, it's a subwoofer amplifier for diving passive and powered subwoofers;

• Mini Compact but Powerful: Built-in low pass filter for 20-300Hz subwoofers with SUB frequency control, small simple compact design but practical and powerful;

• Home Hi-Fi amplifier: Exclusively designed for the customers who pursue HiFi sound; MAX Power Output:200Watt. Note: The package comes with a 32V/5A power supply, you need a more powerful power supply to get the MAX power output;

Specifications

Specifications	Details
Model	M03
RMS Power Output:	RMS 200watt at 4ohm, RMS 100watt at 8ohm
Terminating Impedance	4-8Ω
Input Sensitivity	≤ 0.2mV
Full Frequency Response Range	20Hz-20KHz(± 3db)
Bass Frequency Range	20-200Hz
THD	≤0.03%
SNR	≥ 106dB
DC Input Range	24-48V
Power Supply	32V 5A

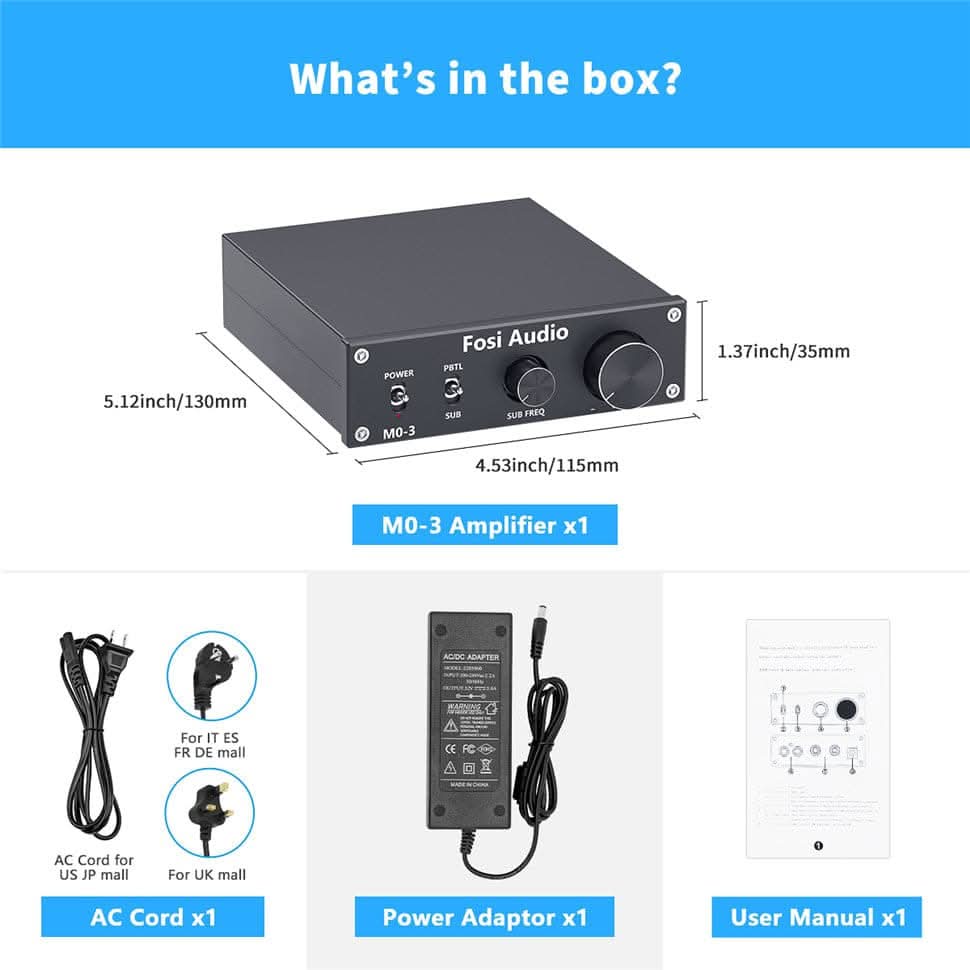

What‘s in the box？

Item	Quantity
Fosi Audio M03 Amplifier	x 1
32V 5A Power Adaptor	x 1
User’s Manual	x 1
