Fosi Audio M04 Subwoofer Power Amplifier

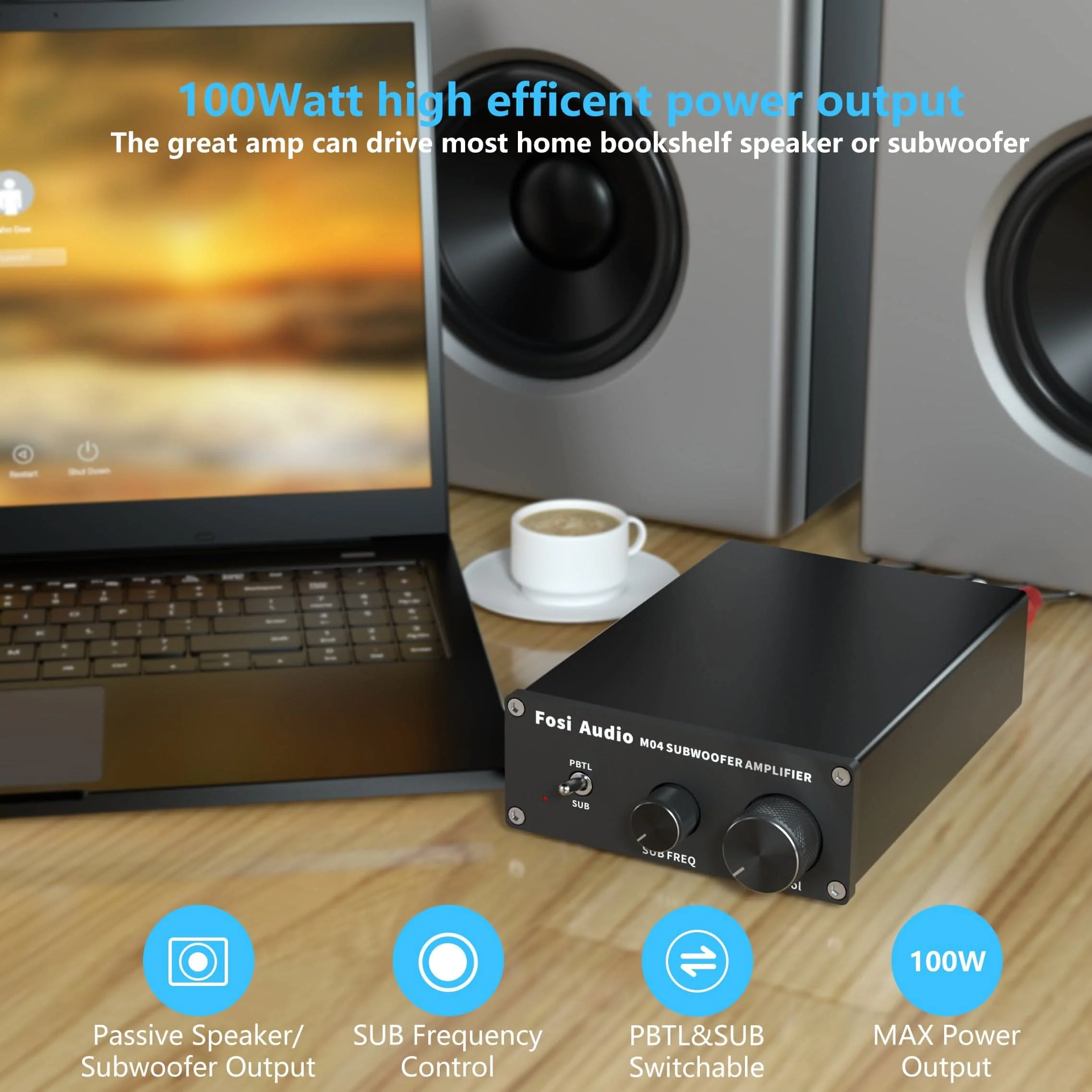

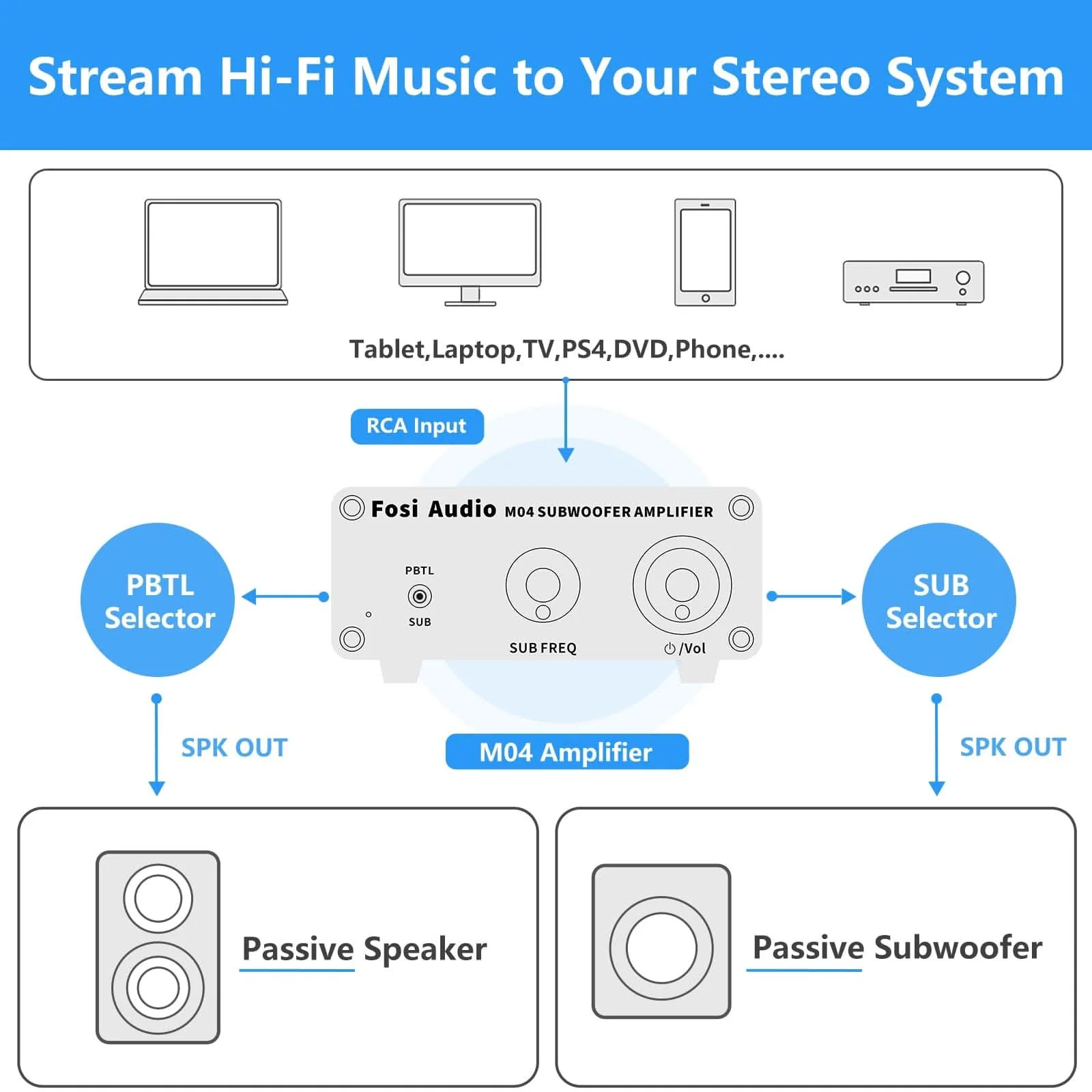

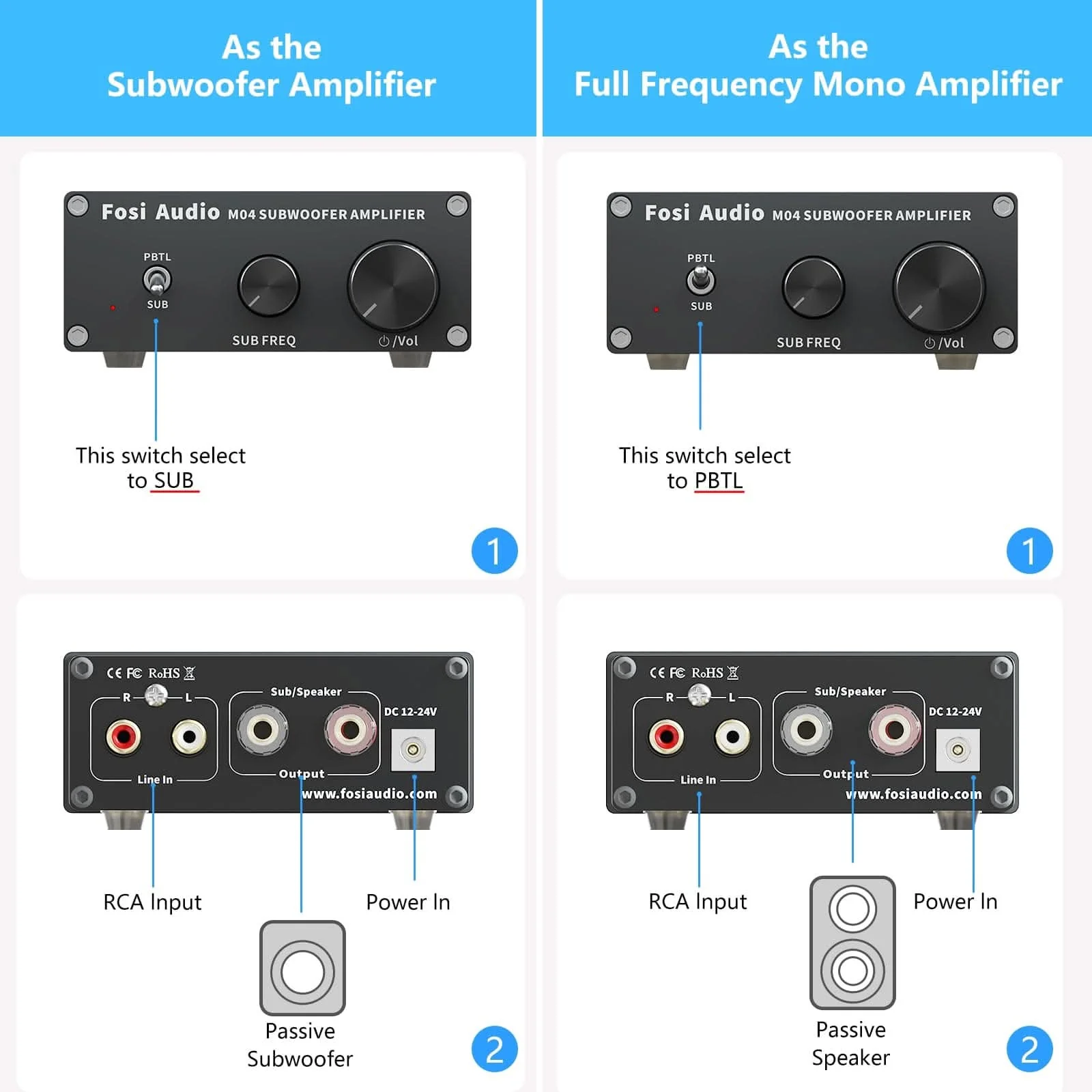

• Small but mighty! Fosi Audio M04 is a 100w mono-channel class D subwoofer amplifier, with a SUB/PBTL switch you can select a subwoofer bass amplifier or full frequency mono amp, can be connected to an active/passive subwoofer and passive speaker.

• The power switch was integrated into volume control, we made it small but supply an in-wall or stand-alone subwoofer the power it needed so you can experience room-shaking low-frequency impact (bass) on movies and music soundtracks.

Specifications

• Input Interface: RCA input

• Output Interface: speaker’s output

• THD: ≤ 0.02% (1KHz, 1W)

• Output: passive subwoofer/speaker

• Input Voltage Range: DC 12V - 24V

• SNR: ≥ 102dB

• Terminating Impedance: 2Ω - 8Ω

• Max Power Output: 100watt @3Ω

• Input Sensitivity: 600MV

• Net weight: 175g

• Dimensions (H * W * D): 103 x 57 x 43MM (4.06 x 2.24 x 1.69’’) includes knobs

• Frequency Response Range: 20Hz-20KHz(±3db)

• Bass Frequency Range: 20Hz-200Hz

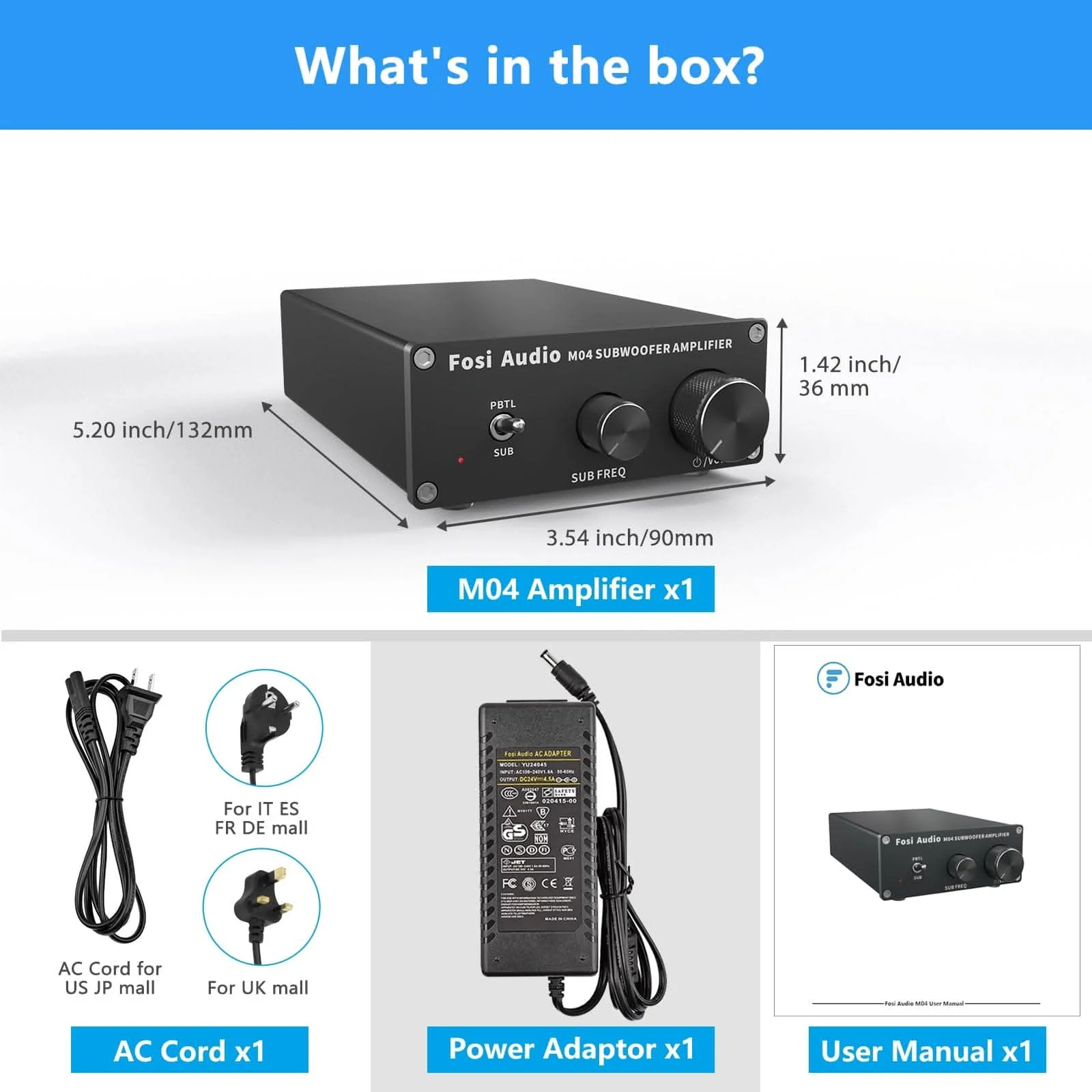

Package Includes

• Fosi Audio M04 Subwoofer/Mono Amplifier x1

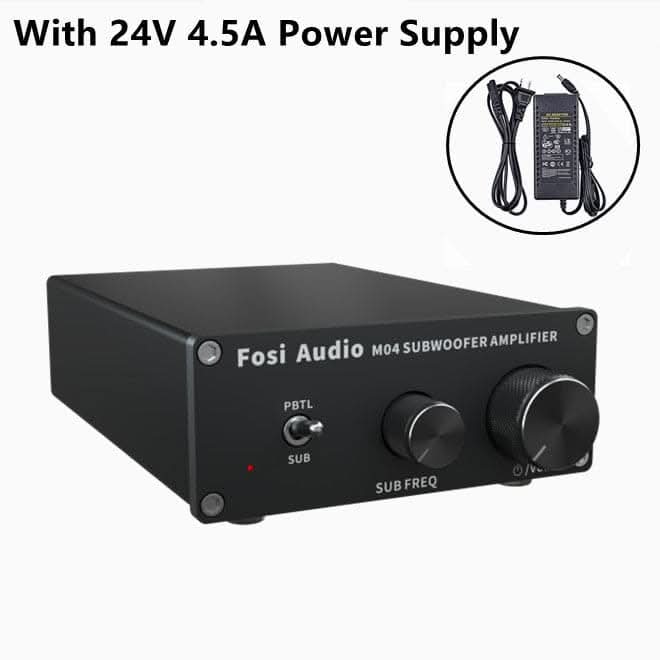

• Power Adaptor x1

• AC cord x1

• User Manual x1
