Fosi Audio TB10D Stereo Audio Amplifier

• If you want to play your favorite songs entertainingly, a mini stereo amplifier is the best way to go. Fosi Audio TB10D is an analog input(RCA) Class-D audio amplifier that easy to install to build your home audio sound system.

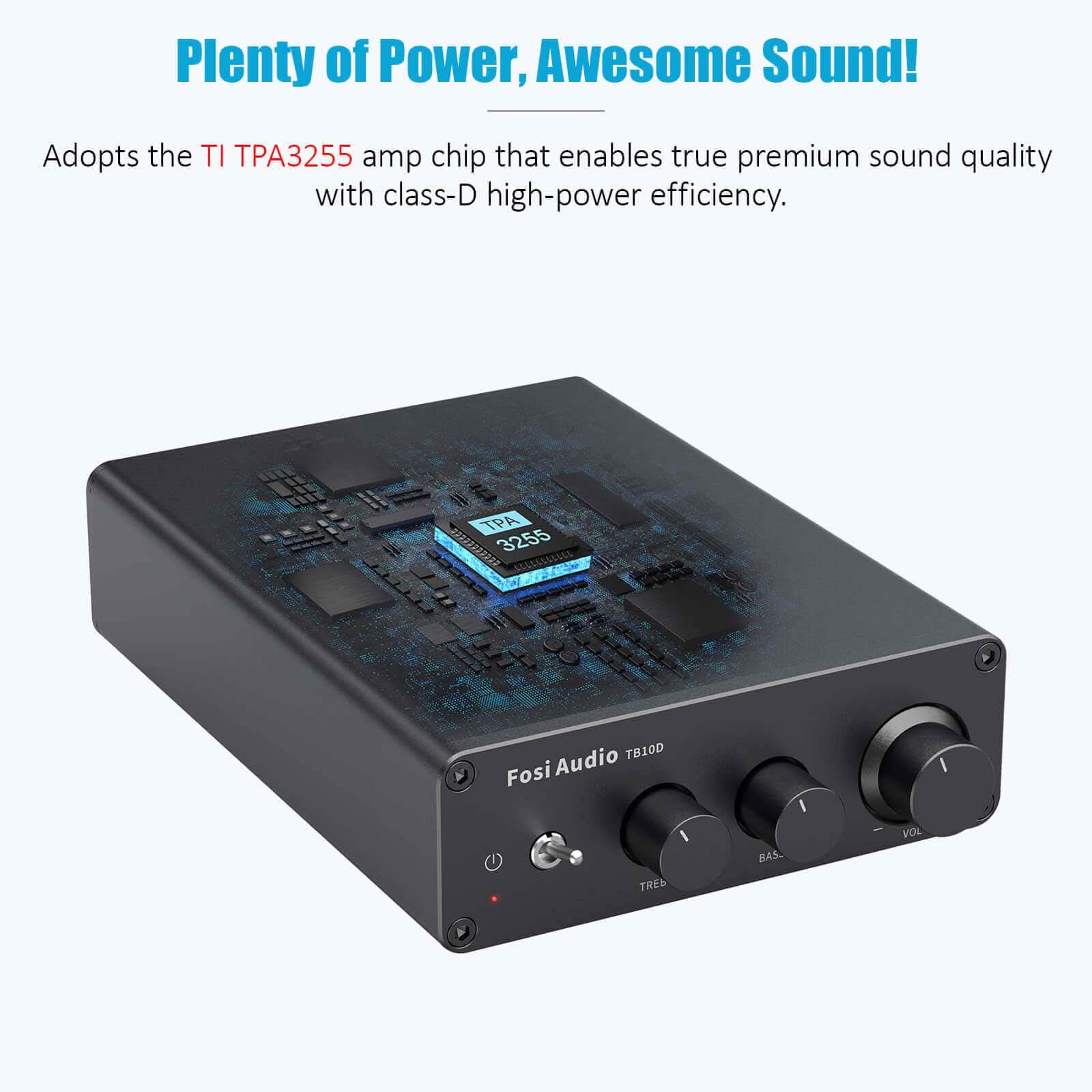

• MAX Power Output up to 600Watts. TB10D adopts TI TPA3255 high-performance Class-D power amplifier chip enabling true premium sound quality. TPA3255 features an advanced integrated feedback design and proprietary high-speed gate driver error correction (PurePath Ultra-HD). This technology allows ultra low distortion across the audio band and superior audio quality. The device is operated in AD-mode, and can drive up to 2 x 300 W into 4-Ω load at 10% THD and 2 x 150 W unclipped into 8-Ω load.

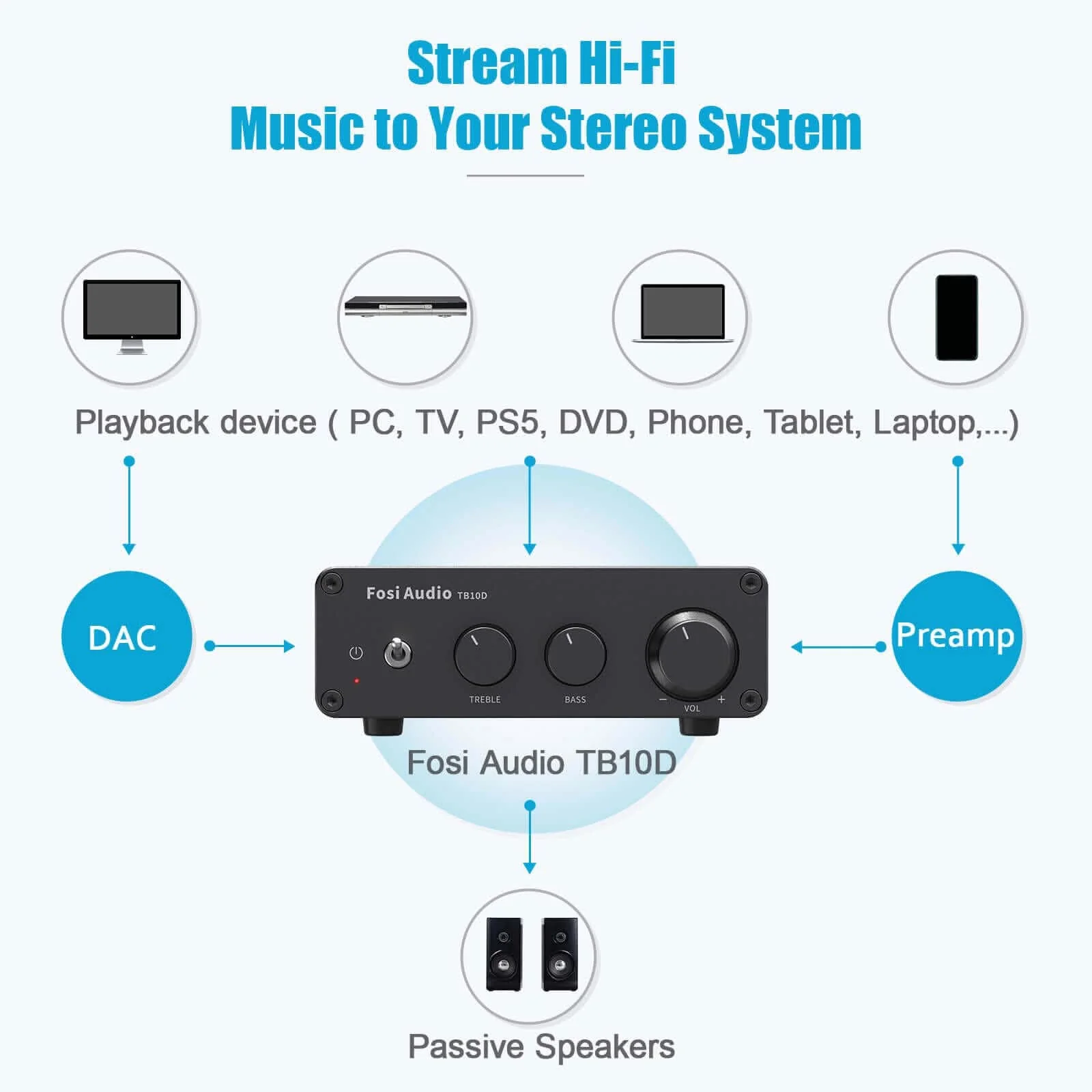

• The high-efficient 2.0CH 300Wx2 desktop power amplifier can drive almost home large passive bookshelf speakers ensuring top-notch sound quality and is compatible with most sound equipment such as computers, DVDs, CD players, PC, laptops, TV, etc.

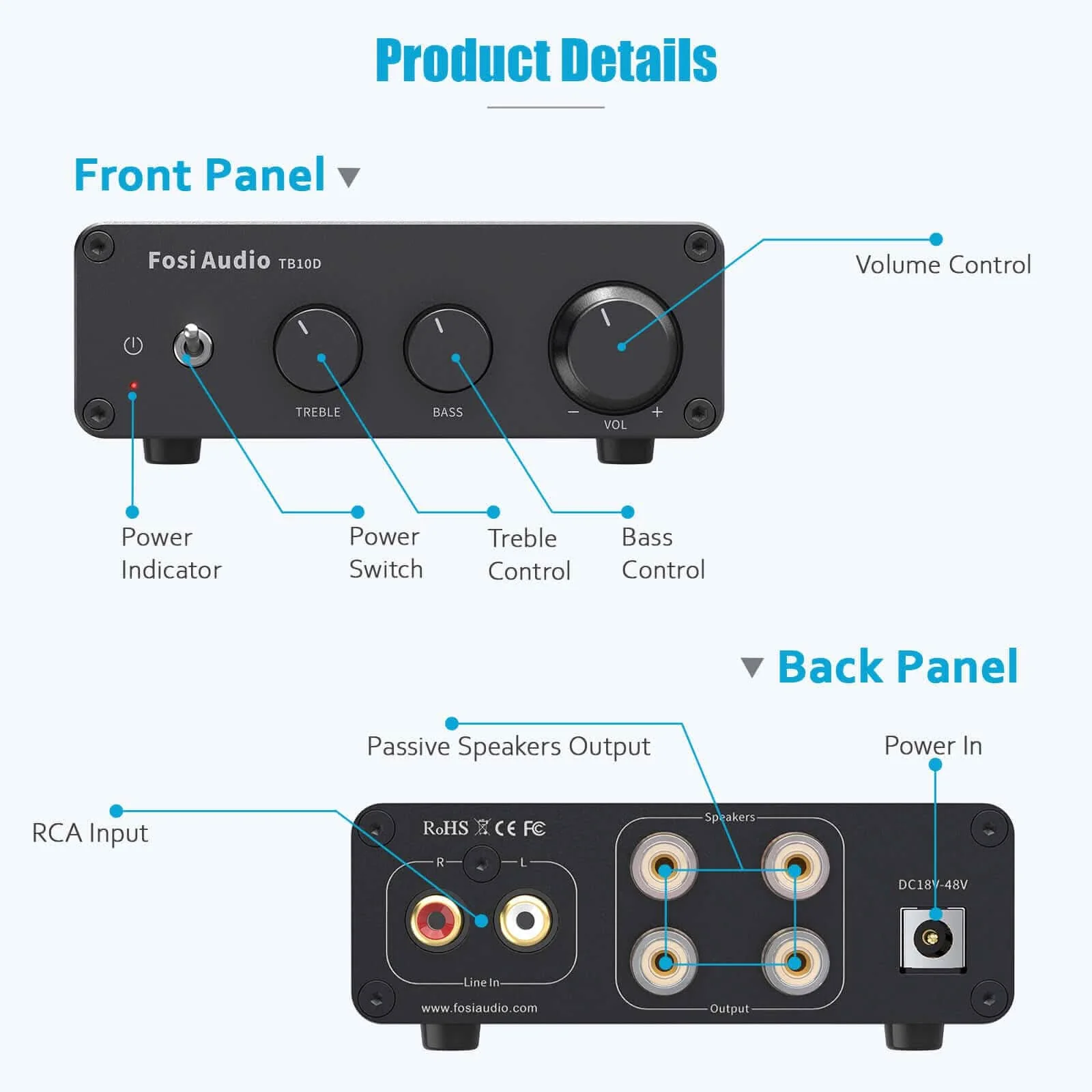

• Mini classic simple design with bass, treble, and volume control. Replaceable Knobs: ORANGE KNOB, GREY KNOB. On the rear are banana plug connectors that can also accept a raw wire.

• What you Get: TB10D amplifier x1, User Manual x1, 32V/5A Power Adapter x1(Note: You need a more powerful power supply to get the MAX 300W x2 power output, such as 48V/10A. The plug of the power adapter will match the country of your delivery address), AC Cord x1, 24-month worry-free warranty, and friendly customer service.

• Tips: If you're in need of a Bluetooth amplifier, you can check out the BT20A PRO. It also has the same chip and power output, with the added feature of a PRE-OUT.

Specifications

Specifications	Details
Model	TB10D
Output Power	300Wx2 @4Ω
Terminating Impedance	2-8Ω
Input Mode	RCA
Output Mode	Passive Speakers
Frequency Range	20Hz - 40kHz (±2dB)
Input Sensitivity	≤ 600mV
THD	≤ 0.3%
SNR	≥ 90dB
Chip Set	TPA3255
DC Input Range	DC18V -48V
Device Weight	1.05kg
Power Supply	32V 5A

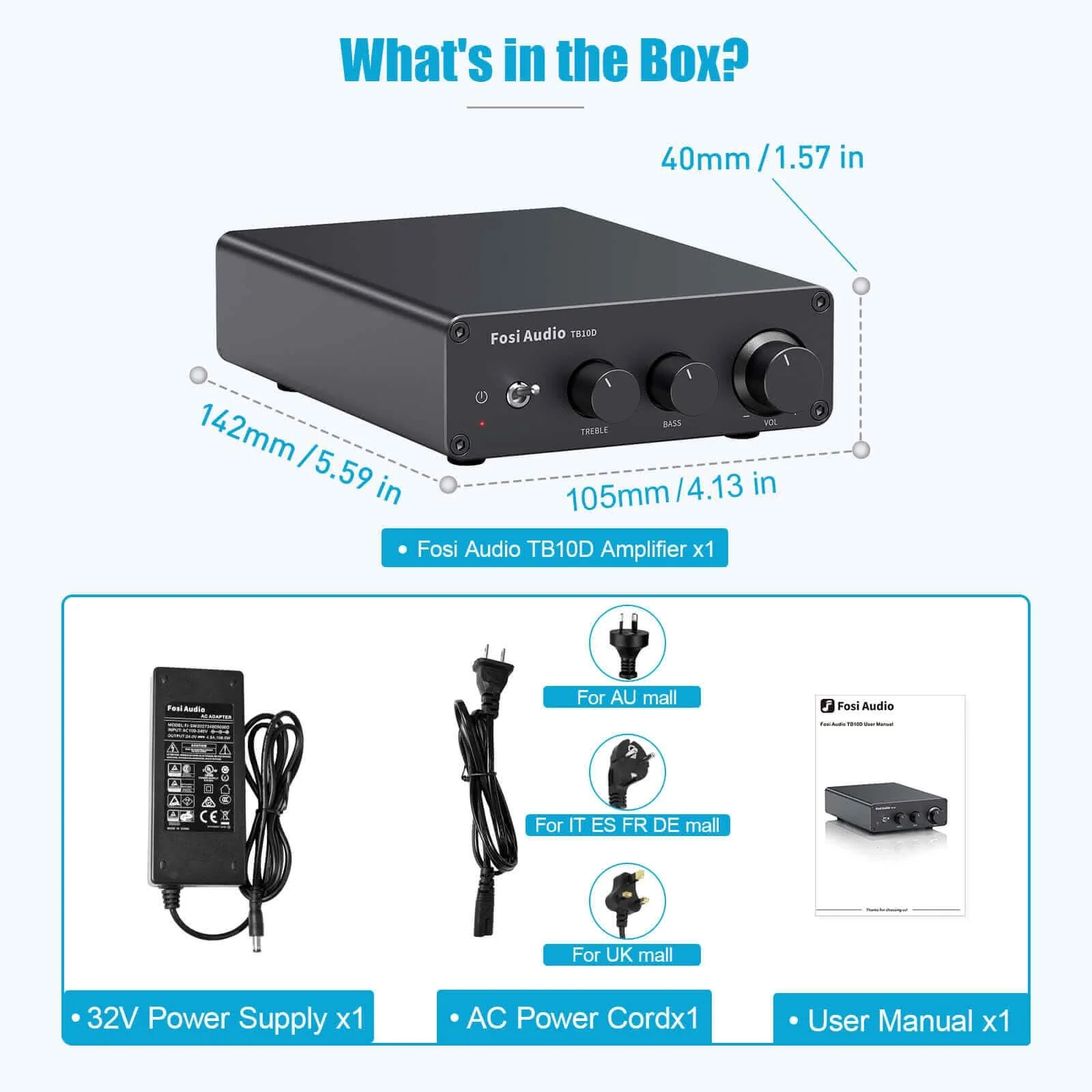

What‘s in the box？

Item	Quantity
Fosi Audio TB10D	x 1
AC Cord	x 1
32V 5A Power Adapter	x 1
User’s Manual	x 1
